GIQ气动高真空蝶阀概述 |
| |
| |
|
GIQ型气动高真空蝶阀是通过电磁换向阀改变气路方向，控制执行气缸驱动蝶阀作启闭运动。用于接通或切断真空管路中的气流。适用介质为纯净空气和非腐蚀性气体。可选配反馈信号装置及电气阀门定位器。 |
|
| |
| ■ |

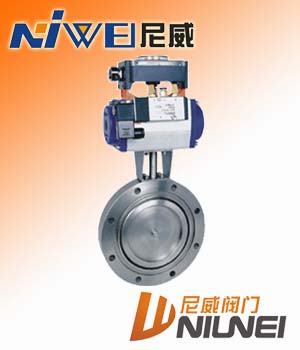

GIQ气动高真空蝶阀
Pneumatic High Vacuum Butterfly Valve
|
| |
| |
|
GIQ pneumatic high vacuum butterfly valve uses solenoid directional valve to change the direction of air passage, and controls the actuating cylinder to drive the butterfly valve opened and closed. It is used to put through or cut off the airflow in vacuum pileline. Applicable medium can be pure air and noncorrosive gases. They may be fitted with signal feedback device and electropneumatic valve positioner. |
|
| |
| ■ |
GIQ气动高真空蝶阀主要技术性能
Main Technical Performance |
| |
| |
|
| 适用范围：Applicability |
105～1.3×10-4Pa |
| 阀门漏率：Valve Leak Rate |
≤1.3×10-4Pa.L/S. |
| 适用温度：Applicable Temperature |
-25～+80℃(丁腈橡胶)
-30～+150℃(氟橡胶) |
| 气源压力：Mains Voltage |
0.4～0.6MPa |
| 安装方向：Mounting Direction |
任意 |
|
|
| |
| ■ |
GIQ气动高真空蝶阀主要零件材料
Materials of Main Parts |
| |
| |
|
阀体、阀盖、阀杆：碳钢或不锈钢
密封件：丁腈橡胶、氟橡胶。
Body, bonnet and stem: carbon steel or stainless steel
Sealing element: NBR, Viton |
|
| |
| CONSTRUCTION FIGHTS(mm) |
| |
| ■ |
GIQ气动高真空蝶阀外形及连接尺寸(mm)
Overall and Connection Dimensions(mm) |
|
|
|
|
Model
型号
|
DN
|
D
|
Do
|
D1
|
B
|
H
|
B1
|
L
|
n-φc
|
|
GIQ-40
|
40
|
85
|
70
|
44
|
22
|
162
|
90
|
104
|
4-φ7
|
|
GIQ-50
|
50
|
110
|
90
|
55
|
22
|
175
|
90
|
104
|
4-φ7
|
|
GIQ-65
|
65
|
125
|
105
|
70
|
26
|
198
|
102
|
140
|
4-φ9
|
|
GIQ-80
|
80
|
145
|
125
|
85
|
30
|
208
|
102
|
140
|
4-φ9
|
|
GIQ-100
|
100
|
170
|
145
|
105
|
30
|
220
|
102
|
140
|
4-φ12
|
|
GIQ-150
|
150
|
220
|
195
|
156
|
35
|
272
|
115
|
164
|
8-φ12
|
|
GIQ-200
|
200
|
275
|
250
|
208
|
40
|
330
|
205
|
190
|
8-φ12
|
|
GIQ-250
|
250
|
330
|
300
|
258
|
45
|
335
|
205
|
190
|
8-φ14
|
|
GIQ-300
|
300
|
380
|
350
|
308
|
55
|
426
|
152
|
247
|
8-φ14
|
|
GIQ-400
|
400
|
500
|
465
|
410
|
60
|
520
|
180
|
308
|
8-φ18
|
|
GIQ-500
|
500
|
600
|
565
|
510
|
80
|
643
|
220
|
378
|
12-φ18
|
|
GIQ-600
|
600
|
710
|
670
|
610
|
100
|
760
|
270
|
524
|
12-φ21
|
|
GIQ-800
|
800
|
920
|
815
|
815
|
130
|
962
|
320
|
648
|
20-φ21
|
|
GIQ-1200
|
1200
|
1440
|
1280
|
1280
|
150
|
1360
|
385
|
1480
|
36-φ19
|
|
